Home Products Nickel Alloy Tube

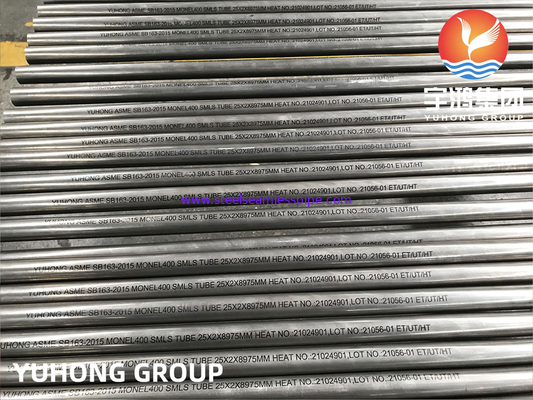

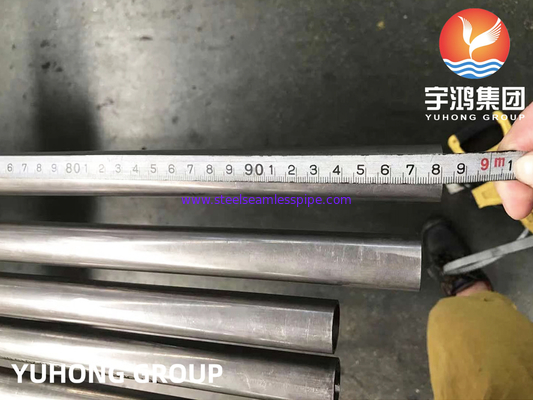

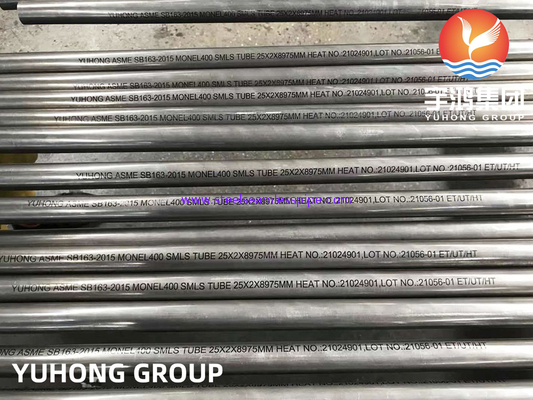

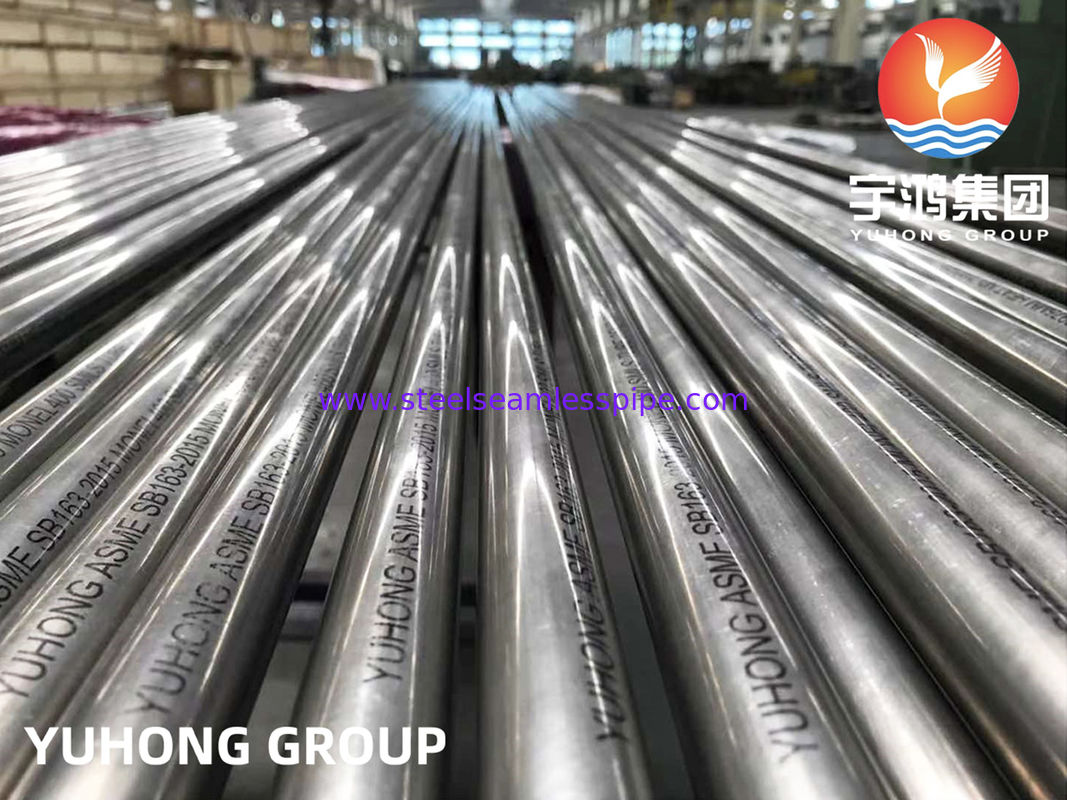

Nickel Alloy Seamless Tube , ASTM B163 MONEL 400 (UNS N04400) For High-precision Application

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, ISO 9001
Model Number:	ASTM B163 MONEL 400 TUBE

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	Depending on QTY
Payment Terms:	T/T,L/C at sight
Supply Ability:	1000 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (274)

Stainless Steel Seamless Tube (263)

Duplex Stainless Steel Pipe (125)

Duplex Stainless Steel Tube (22)

Needle Tube (69)

Fin Tube (568)

Heat Exchanger (8)

Heat Exchanger Tube (414)

Heat Exchanger Tube Bundle (34)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (35)

Air Cooler (3)

Pressure Vessel (1)

Stainless Steel Welded Pipe (56)

Stainless Steel Welded Tube (110)

Nickel Alloy Pipe (263)

Nickel Alloy Tube (61)

Copper Alloy Tube (205)

Alloy Steel Tube (173)

Titanium Tube (6)

Bright Annealed Tube (155)

Boiler Tube (135)

Steel Fitting (773)

Steel Flange (566)

Others (382)

U Bend Tube (0)

Detailed Product Description

Standard:	ASTM B163/ASME SA163	Material Grade:	Monel 400/UNS N04400
Surface:	Bright Annealed / Polished	Size:	OD.: 3MM To 530MM , WT.: 0.2MM To 60 MM , L.: Max 30M
Section Shape:	Round	Packing:	Ply-Wooden Case Or Iron Case
Highlight:	UNS NO4400 Seamless Tube , Polished Nickel Alloy Pipe , Seamless Round Nickel Alloy Tube

Nickel Alloy Seamless Tube , ASTM B163 MONEL 400 (UNS N04400) For High-precision Application

Name: Nickel Alloy Seamless Tube , ASTM B163 MONEL 400 (UNS N04400) For High-precision Application
Brand: Yuhong Group Co.,Ltd
SKU: ASTM B163 MONEL 400 TUBE
Price: negotiable USD
Availability: InStock

Overview of ASTM B163 MONEL 400 Tube

Monel 400 is a nickel-copper alloy with excellent corrosion resistance in various substances. Monel400 is characterized by excellent general corrosion resistance, excellent malleability and its equivalent to high toughness. The alloy has been used in a variety of applications. It has good resistance to rapidly flowing micro-water or sea surface. When degassing sulfuric acid and hydrochloric acid, it is particularly corrosion resistant. The alloy is slightly magnetic at room temperature. Monel400 is widely used in organic chemistry, crude oil and deep-sea industrial production.

Monel400 alloy tubes are more resistant to corrosion than commercial pure nickel (UNS N02200) under reducing conditions, and more resistant to corrosion than refined copper alloys under oxidizing conditions. However, monel400 alloy tubes are not suitable for highly oxidizing acids, such as nitric acid or nitrite. In this environment, high chromium stainless steel should be considered to use UNS S44627 or 310 (UNS S31000) steel.

Characteristic of Monel 400 Tube

Monel400 is a corrosion resistant alloy with a large amount of use, the most extensive main use and excellent comprehensive performance. This alloy has excellent corrosion resistance in hydrochloric acid and fluorine gas, and also has excellent corrosion resistance to hot concentrated caustic soda solution. In addition, it is also resistant to the corrosion of neutral solution, water, sea surface, air, organic matter, etc. A key feature of this alloy is that it generally does not cause intergranular corrosion cracks and has excellent workability.

Monel 400 Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	NU-30M	NiCu30Fe

Chemical Composition of Monel 400 Tube

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel 400	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Physical Properties of Monel 400 Tube

Properties	Metric	Imperial
Density	8.8 gm/cm3	0.318 lb/in3

Mechnical Properties of Monel 400 Tube

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %

ASTM B163 Monel 400 Tube Application:

Seamless water pipe and steam pipe of power plant
Seawater exchanger and evaporator
Sulfuric acid and hydrochloric acid environment
Crude oil distillation
Use the pump shaft and propeller of the equipment in seawater.
The nuclear industry is used to manufacture equipment for refining uranium and separating isotopes.
Manufacture of pumps and valves for hydrochloric acid production equipment
