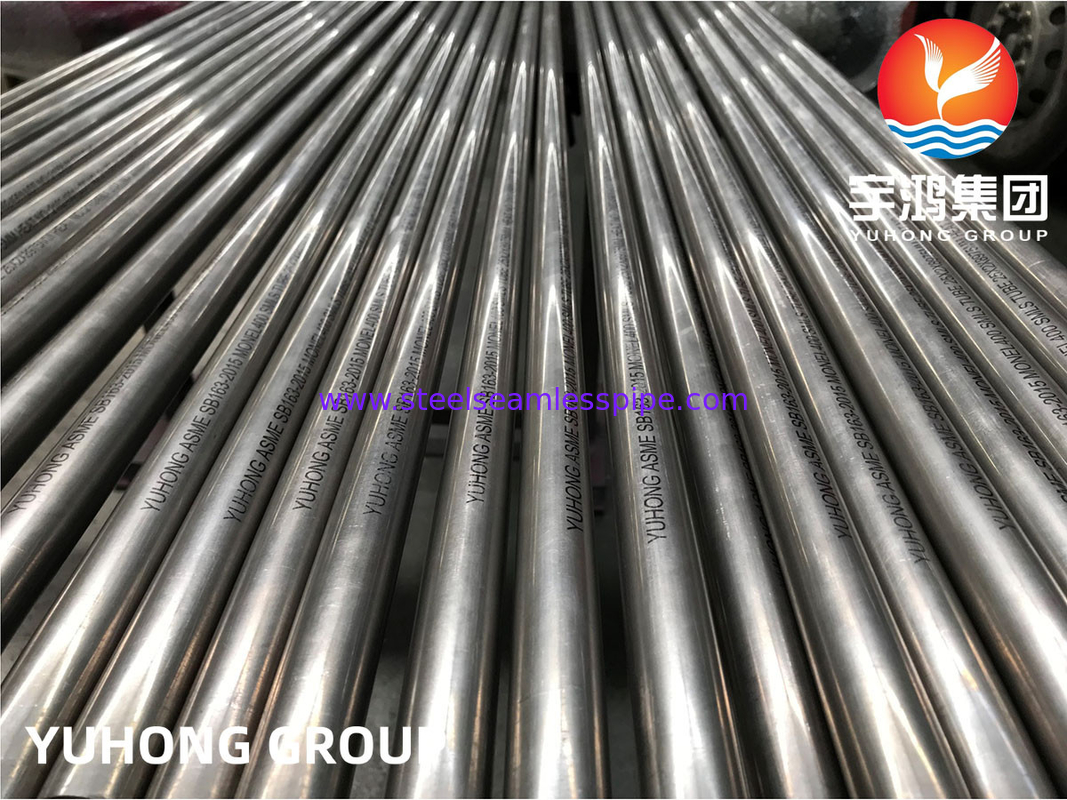

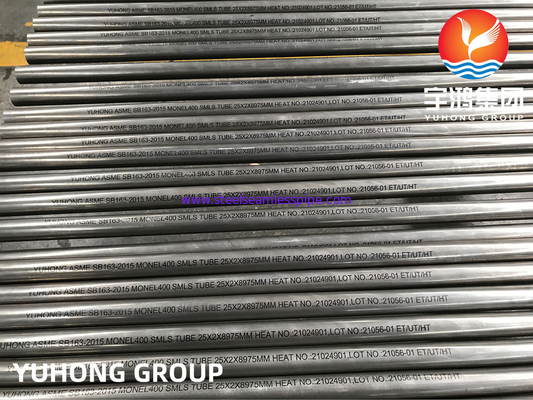

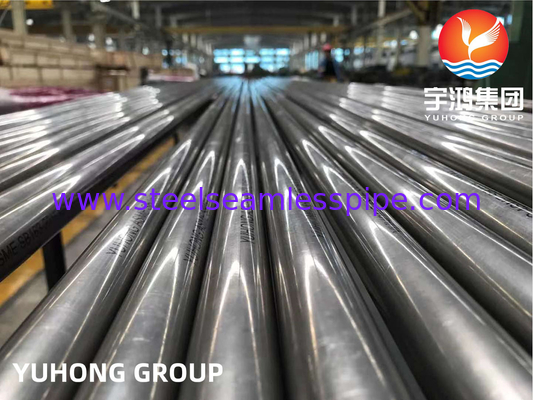

ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application

ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application

  • ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application
  • ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application
  • ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application
  • ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application
ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: MONEL400,UNS NO4400, DIN 2.4360, ALLOY 400
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: PLYWOOD CASE,BUNDLE,PALLET
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (274)
Stainless Steel Seamless Tube (263)
Duplex Stainless Steel Pipe (125)
Duplex Stainless Steel Tube (22)
Needle Tube (69)
Fin Tube (568)
Heat Exchanger (8)
Heat Exchanger Tube (414)
Heat Exchanger Tube Bundle (34)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (35)
Air Cooler (3)
Pressure Vessel (1)
Stainless Steel Welded Pipe (56)
Stainless Steel Welded Tube (110)
Nickel Alloy Pipe (263)
Nickel Alloy Tube (61)
Copper Alloy Tube (205)
Alloy Steel Tube (173)
Titanium Tube (6)
Bright Annealed Tube (155)
Boiler Tube (135)
Steel Fitting (773)
Steel Flange (566)
Others (382)
U Bend Tube (0)
Detailed Product Description
STANDARD: ASTM B163, B165, B167, ASME SB163, SB165, SB167 MATERIAL: MONEL400,UNS NO4400, DIN 2.4360, ALLOY 400
NDT: ET, UT, HT, PT TYPE: Straight Tube , U Bend Tube , Coil Tube, Fin Tube
PACKAGE: PLYWOOD CASE,PALLET LENGTH: Single Random, Double Random & Cut Length.
Highlight:

9m monel 400 seamless pipe

,

heat exchanger monel 400 seamless tube

,

b165 monel 400 seamless tube

ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application



Monel 400 is a nickel-copper alloy renowned for its exceptional corrosion resistance and mechanical strength, particularly in aggressive environments. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions.Here's a detailed overview:


ASME SB163 / B165 Monel 400 Chemical Compositon:
GRADE C Mn Si S Cu Fe Ni
Monel 400 0.30Max 2.00Max 0.5Max 0.24Max 28.0-34.0 2.50Max 63.00Min



Equivalent Grades for Monel 400 Seamless Tubes:

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.436 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe



ASME SB163 / B165 Monel 400 Mechanical Properties:

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40%



Monel 400 Key Properties:

1. Corrosion Resistance:
- Resists seawater, acidic (e.g., sulfuric, hydrofluoric), and alkaline environments.
- Performs well in marine, chemical, and oil/gas industries.
2. Mechanical Strength:
- High tensile strength (~550 MPa) and retains ductility at subzero temperatures.
3. Temperature Tolerance:
- Serviceable up to 535°C (1000°F); avoids embrittlement in cryogenic conditions.
4. Fabrication:
- Weldable using techniques like TIG/MIG with argon shielding.
- Machinable but prone to work hardening; requires slow speeds and sharp tools.

Applications:
  • Marine Engineering: Pump shafts, propeller shafts, seawater valves.
  • Chemical Processing: Heat exchangers, reactors, piping.
  • Oil & Gas: Wellhead components, downhole equipment.
  • Aerospace/Military: Fasteners, turbine blades.
Advantages vs. Other Alloys:
- Superior to stainless steel in chloride-rich (e.g., seawater) and acidic environments.
- More expensive than steel but offers longevity in harsh conditions.
ASME SB163 / B165 MONEL 400 Nickel Alloy Seamless Tube, Heat Exchanger /Air Cooler Application 0
