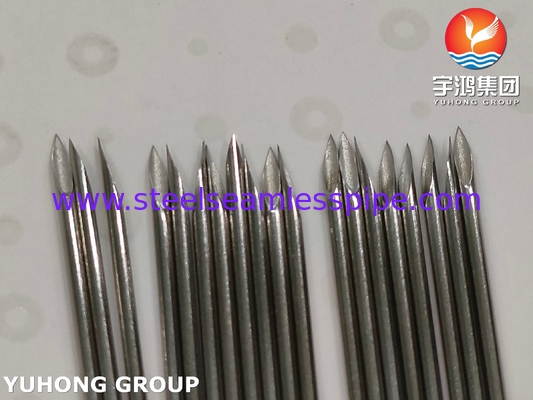

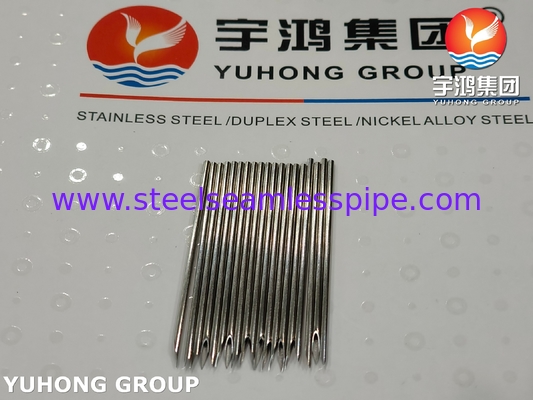

Veterinary Needle ,16G Stainless Steel Needle Tube For Veterinary Use , Triple bevel Point

Veterinary Needle ,16G Stainless Steel Needle Tube For Veterinary Use , Triple bevel Point

What are Veterinary Needles?

Veterinary needles are used in various medical applications for animals, such as injecting vaccines, collecting blood samples, and infusing medications. These veterinary needle tubes are typically produced by stainless steel material grade, like SUS304 and come in various sizes. The size of the needle are essential to ensure the needle tube to reach the required area and infuse the medication or fluid without pain or discomfort. The sizes(Gauge and length) of the needle tube are essential factors to consider when selecting a suitable veterinary needle. The Gauge refers to the diameter of the needle tube, with lower gauge indicating thicker needles. The length of the needle tube should be appropriate for the size of animals and the depth of the injection sites. Choosing the suitable Gauge and length can be helpful to reduce the pain and discomfort of animals.

YUHONG GROUP is an ISO13485-certificated manufacturer of stainless steel needle tubes for medical use. We can provide various types of needle tubes, including veterinary needle, hypodermic needle, blood lancet needle, blood collection needle, insulin needle, mesotherapy needle, dental needle and so on. For needles with special needle tips, we can also manufacture customized needle tubes according to clients' drawings. Our annual production quantity of medical needle tubes is up to 13 billion pieces.

The Veterinary Needles we manufacture is made of stainless steel with so many advantages:

• Different needle bevels or blunt type

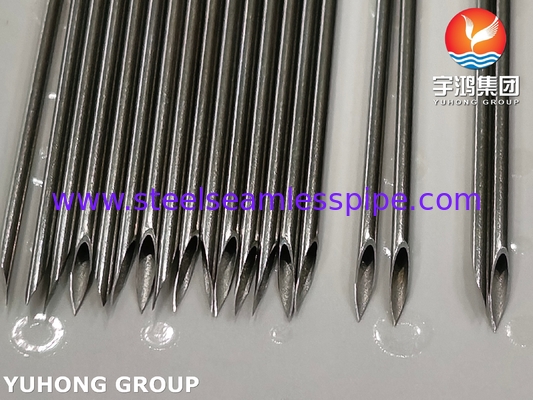

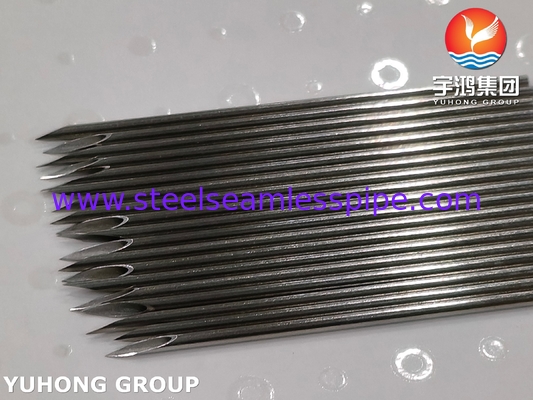

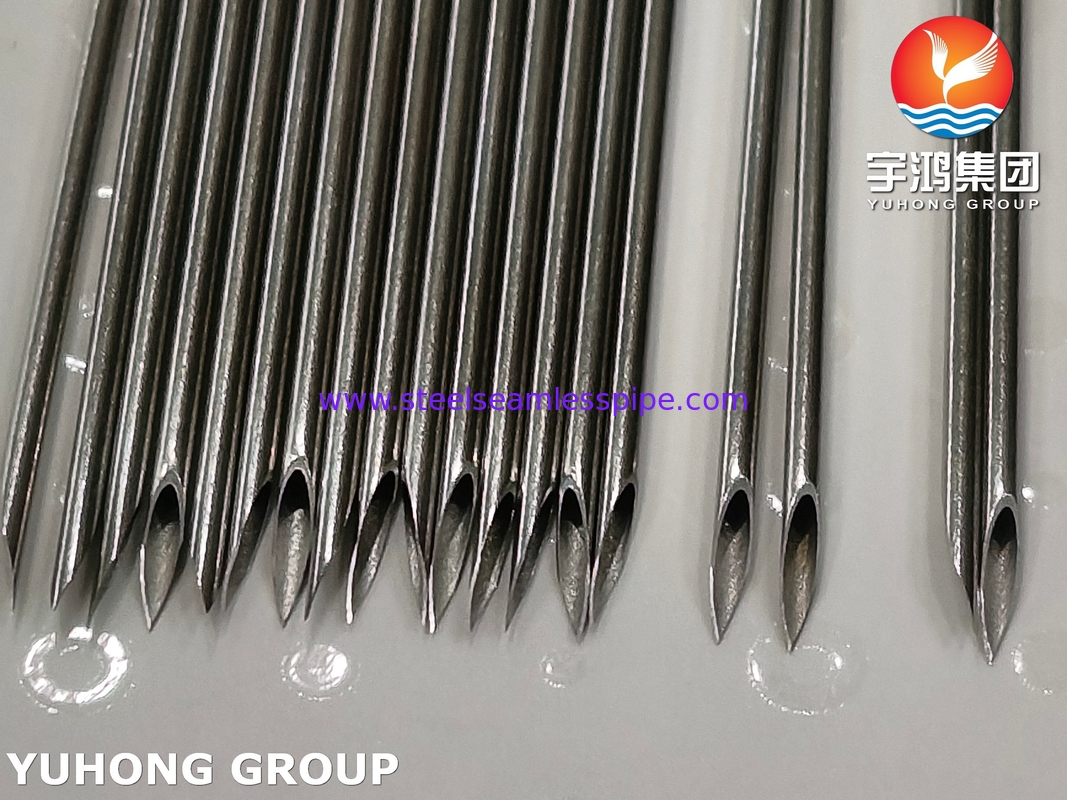

• Triple bevel sharp point grinding for easy penetration.
• Thick walled cannula prevent needle point bending during the use.

Types of Veterinary Needles:

• Hypodermic Needles: Used for injections (subcutaneous, intramuscular, intravenous). Common in vaccinations and medication administration.
• IV Catheters: For fluid therapy or blood collection. Sizes vary (e.g., 18G for large animals, 24G for small pets).
• Surgical Needles: Attached to sutures; curved or straight, with cutting or non-cutting edges for tissue closure.
• Specialized Needles: Includes spinal, biopsy, or intraosseous needles for specific procedures.

Sizes:

• Gauge: e.g., 18G for thick fluids, 25G for delicate injections
• Length: Ranges from ½ inch (subcutaneous in cats) to 1.5–3 inches (intramuscular in livestock).
• Selection Factors: Animal size (species, weight), injection type (SQ, IM, IV), and medication viscosity.

Different sizes are used for different animals:

• Small Animals (Cats/Dogs): 22–25G, ½–1 inch for SQ/IM.
• Livestock (Cattle/Horses): 18–20G, 1–1.5 inches for IM; longer needles (2–3 inches) for deep muscle.
• Exotics (Birds/Reptiles): Ultra-fine needles (27–30G) due to delicate tissues.

Guage Chart:

Common Uses:

• Subcutaneous (SQ): Short needles (e.g., 22–25G) for vaccines/fluids under the skin.
• Intramuscular (IM): Longer needles (20–22G) for antibiotics or pain relief in muscle.
• Intravenous (IV): Catheters (18–24G) for fluids or anesthesia.
• Intradermal: Fine needles (25–27G) for allergy testing or TB tests.
