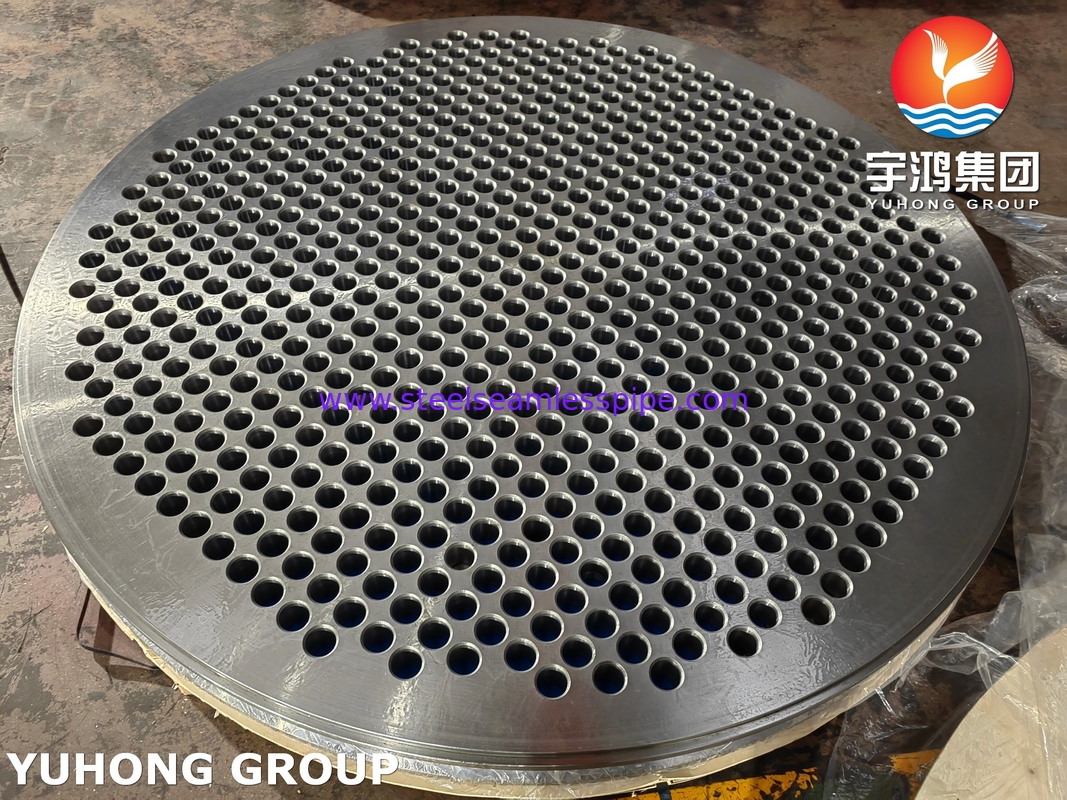

ASTM A516 Gr. 70/Gr. 70N tubesheets are critical components in heat exchangers, pressure vessels, and boiler systems, used to provide a solid foundation for the insertion of tubes that facilitate heat transfer. The material is specified under the ASTM A516 standard, which is known for its high-strength, low-alloy carbon steel used primarily in pressure vessel applications. Here’s an overview of the applications and advantages of
ASTM A516 Gr. 70/Gr. 70N tubesheets:
Applications
1.Heat Exchangers
ASTM A516 Gr. 70/Gr. 70N tubesheets are widely used in heat exchangers to hold tubes in place, ensuring optimal heat transfer between two fluids. These tubesheets are used in both shell-and-tube heat exchangers and air-cooled heat exchangers.
2.Pressure Vessels
These tubesheets are employed in pressure vessel systems where they act as the interface between the shell and the tube bundle, especially in environments with high pressure and temperature.
3.Boilers and Superheaters
In steam boilers and superheater systems, ASTM A516 Gr. 70/Gr. 70N tubesheets help secure the tubes that carry steam or water, contributing to the efficient heat transfer and overall performance of the boiler.
4.Condensers
Used in condensers where cooling or condensation of steam occurs. The tubesheet provides structural support for the cooling tubes, allowing for the transfer of heat from the steam to the cooling medium.
5.Chemical and Petrochemical Plants
Common in chemical reactors and other high-pressure, high-temperature systems, ASTM A516 Gr. 70/Gr. 70N tubesheets are used where corrosion resistance, strength, and integrity are crucial.
6.Offshore and Marine Applications
Used in marine heat exchangers and offshore platforms, where tubesheets are subjected to both pressure and corrosion from the marine environment.
Advantages of ASTM A516 Gr. 70/Gr. 70N Tubesheets
1.High Strength and Durability
ASTM A516 Gr. 70 is a carbon steel alloy that offers good tensile strength and can withstand high-pressure environments, making it ideal for pressure vessel applications, including tubesheets. Gr. 70N, with its additional normalizing treatment, offers improved toughness and uniformity in the material properties.
2.Excellent Weldability
ASTM A516 is known for its good weldability, meaning the tubesheet can be easily welded to other parts of the system (such as the shell or tube bundle) without compromising its strength. This is particularly important in pressure vessels and heat exchangers where welded connections are often used.
3.Corrosion Resistance
While not as resistant as alloy steels, ASTM A516 Gr. 70 has moderate resistance to general corrosion, especially in environments where there is no exposure to highly corrosive substances. Gr. 70N, due to its treatment, shows improved performance in these respects.
4.Good Performance at Elevated Temperatures
The steel provides adequate performance at elevated temperatures (up to around 650°F or 343°C), making it suitable for high-temperature applications such as boilers and steam systems.
5.Cost-Effectiveness
ASTM A516 Gr. 70/Gr. 70N offers a balance of strength, weldability, and corrosion resistance at a relatively lower cost compared to higher-alloy steels, making it a cost-effective choice for many industrial applications.
6.Improved Toughness (Gr. 70N)
The Gr. 70N grade, due to its normalizing process, provides improved toughness and resistance to brittle fracture, especially in low-temperature environments, which is vital for ensuring long-term reliability in demanding systems.
7.Compliance with Industry Standards
ASTM A516 Gr. 70/Gr. 70N is a well-established material specification recognized globally, ensuring that tubesheets made from this material meet stringent industry standards for pressure vessels and heat exchangers.
Versatility
It is versatile in terms of application, performing well across different industries, including power generation, petrochemical, and manufacturing.
Key Differences Between ASTM A516 Gr. 70 and Gr. 70N
Gr. 70 is typically used for general pressure vessel applications where strength is essential.
Gr. 70N, through a normalizing treatment, improves toughness, uniformity, and ductility, making it more suitable for applications where additional resistance to low temperatures or brittle fracture is needed.
