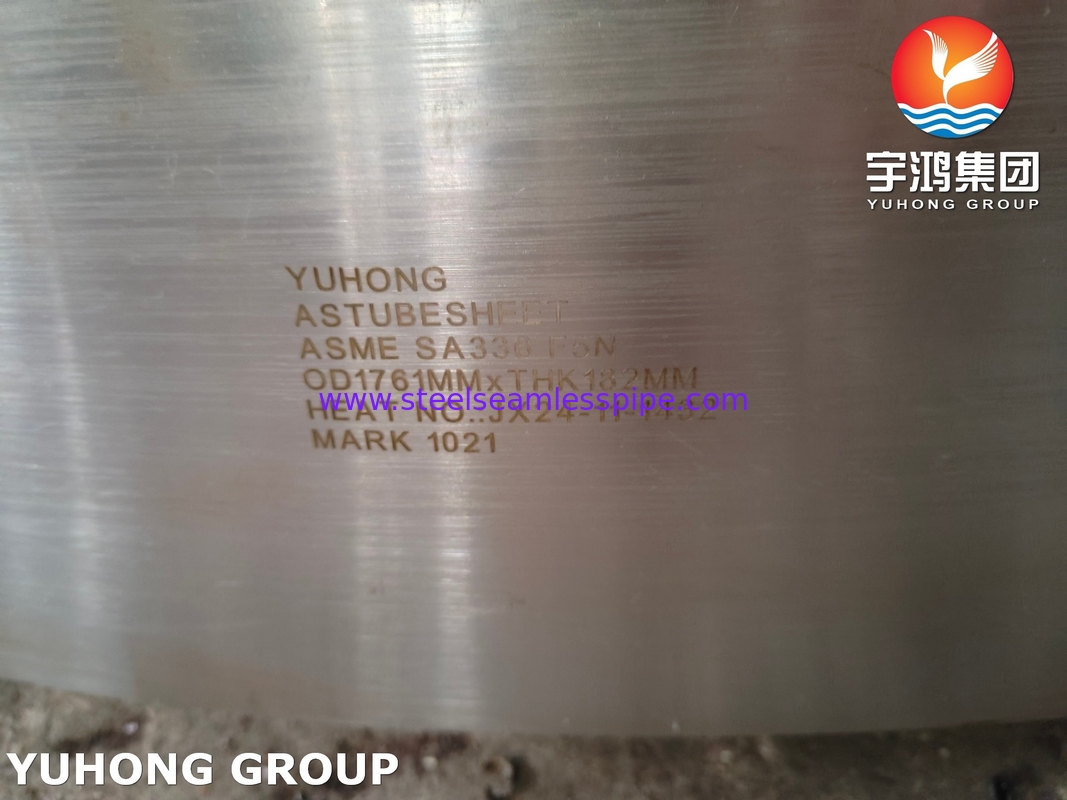

ASME SA336 F5N Heat Exchanger Tubesheet

ASME SA336 F5N Heat Exchanger Tubesheet

What is SA336 F5N Heat Exchanger Tubesheet?

A heat exchanger tubesheet is a critical component in shell-and-tube heat exchangers, acting as a support structure that holds the tubes in place and ensures proper fluid separation between the shell side and tube side.

Specification:

Governed by ASME/ASTM SA-336, a standard for forged steel fittings and components designed for high-temperature and high-pressure service.

Grade F5N is a 5% chromium, 0.5% molybdenum (Cr-Mo) alloy steel with normalized heat treatment (the "N" suffix).

Key Composition & Properties:

Chemical Composition:

Cr: 4.0–6.0%, Mo: 0.45–0.65%, C: ≤0.15% (enhanced weldability vs. standard F5).

Mechanical Properties:

Tensile Strength: ≥485 MPa (70 ksi)

Yield Strength: ≥275 MPa (40 ksi)

High creep resistance at temperatures up to 600°C (1112°F).

Improved toughness due to normalized heat treatment.

Why SA-336 F5N for Tubesheets?

High-Temperature Performance:

Retains strength and resists deformation under prolonged thermal stress (ideal for heat exchangers in refineries, power plants, and chemical processing).

Corrosion & Oxidation Resistance:

Chromium content provides resistance to oxidation and sulfidation (common in sour gas or crude oil environments).

Suitable for hydrogen service (resists hydrogen embrittlement).

Weldability & Fabrication:

Lower carbon content compared to standard F5 reduces pre/post-weld heat treatment requirements.

Compatible with cladding (e.g., stainless steel overlay) for aggressive media.

Application in Heat Exchangers

Role of the Tubesheet:

Acts as a structural anchor for tubes, maintaining alignment and sealing shell/tube-side fluids.

Must withstand differential thermal expansion, pressure loads, and cyclic stresses.

Typical Use Cases:

Refinery Heat Exchangers: Handling hydrocarbons, H₂S, or high-pressure steam.

Power Plants: Feedwater heaters, condensers, or boilers.

Hydrogen or Ammonia Plants: High-pressure, high-temperature service.

Design & Manufacturing Compliance

ASME Standards:

ASME BPVC Section VIII: Governs design, material selection, and fabrication of pressure vessels/tubesheets.

Section II (Materials): Specifies SA-336 F5N chemical/mechanical requirements.

Section IX: Welding procedures (e.g., SMAW, GTAW) for Cr-Mo steels.

Fabrication Steps:

Forging: SA-336 F5N is forged to shape for superior grain structure.

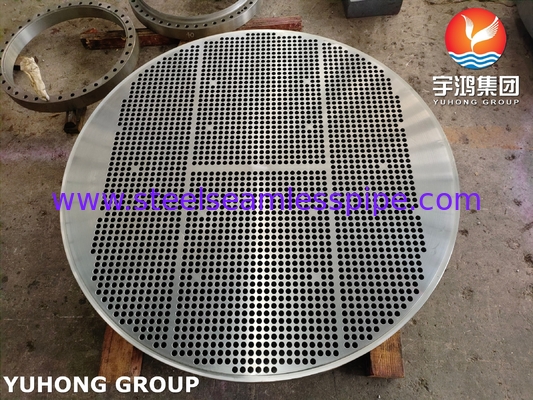

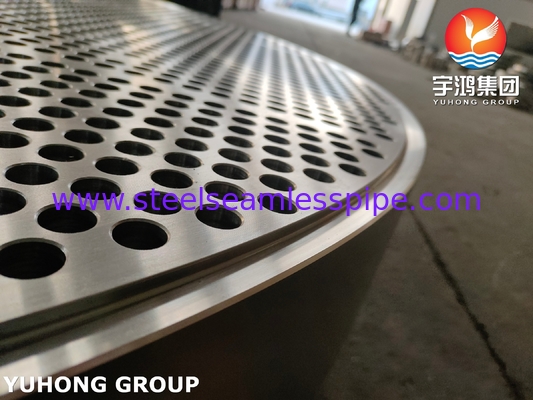

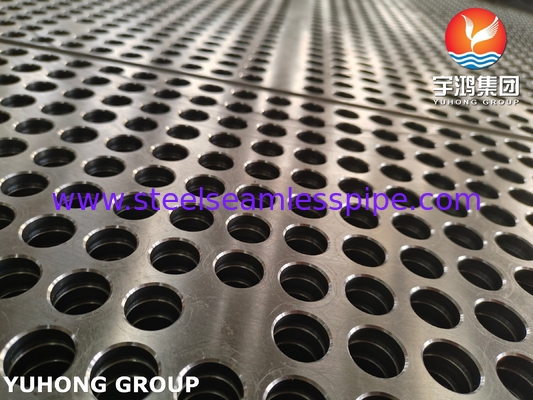

Drilling: Precision drilling of tube holes (TEMA standards for pitch/tolerance).

Heat Treatment: Normalized (heated to 900°C+ and air-cooled) to refine microstructure.

Testing & Inspection:

NDT: Ultrasonic testing (UT) or radiography (RT) for defects.

Hydrostatic Testing: Validates pressure integrity.

Hardness Testing: Ensures compliance post-welding.

Comparison with Similar Materials

Key Considerations for SA-336 F5N Tubesheets

Welding Challenges: Requires low-hydrogen electrodes (e.g., E8018-B2) and strict PWHT (post-weld heat treatment).

Thermal Stress Management: Differential expansion between tubes (e.g., stainless steel) and the F5N tubesheet must be addressed.

Corrosion Protection: Cladding or overlay may be needed for highly corrosive fluids (e.g., chlorides).

Conclusion

The ASME SA-336 F5N tubesheet is a robust choice for demanding heat exchanger applications, offering a balance of high-temperature strength, corrosion resistance, and weldability. Its normalized structure ensures reliability in critical industries like refining, petrochemicals, and power generation.
