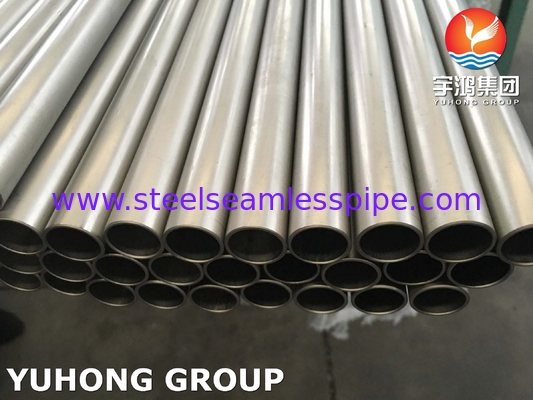

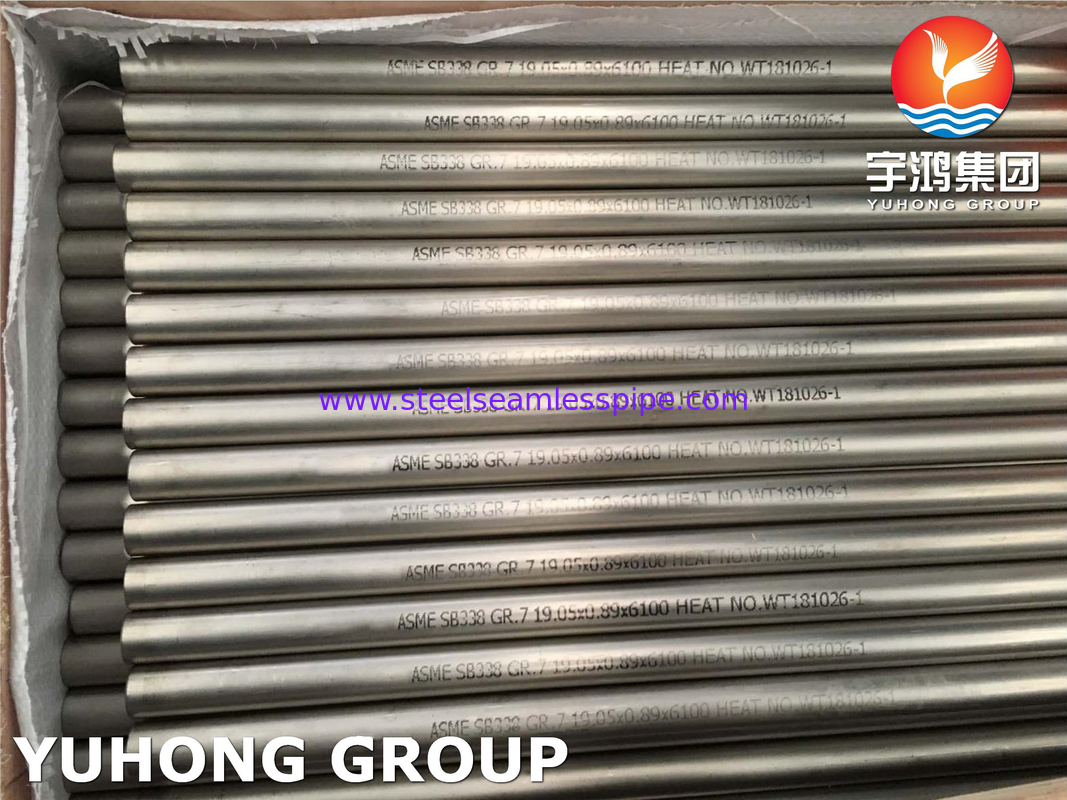

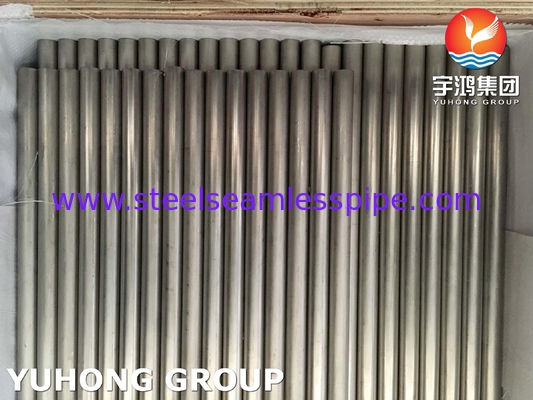

ASME SB338 Gr.7 Titanium Tubes Ti-Pd 0.2 Certified For Chemical Marine

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, BV, ISO, ASTM, SGS
Model Number:	ASTM B338 GR7

Payment & Shipping Terms:

Minimum Order Quantity:	3000KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time:	Depends on quantity
Payment Terms:	L/C,T/T
Supply Ability:	1000 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (274)

Stainless Steel Seamless Tube (263)

Duplex Stainless Steel Pipe (125)

Duplex Stainless Steel Tube (22)

Needle Tube (69)

Fin Tube (568)

Heat Exchanger (8)

Heat Exchanger Tube (414)

Heat Exchanger Tube Bundle (34)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (35)

Air Cooler (3)

Pressure Vessel (1)

Stainless Steel Welded Pipe (56)

Stainless Steel Welded Tube (110)

Nickel Alloy Pipe (263)

Nickel Alloy Tube (61)

Copper Alloy Tube (205)

Alloy Steel Tube (173)

Titanium Tube (6)

Bright Annealed Tube (155)

Boiler Tube (135)

Steel Fitting (773)

Steel Flange (566)

Others (382)

U Bend Tube (0)

Detailed Product Description

Specification:	ASTM B338 / ASME SB338	Grade:	Grade 7 (Ti-Pd 0.2) / UNS R52400
Product Form:	Seamless Tube & Welded Tube (Optional)	Surface Finish:	Mill Finish, Pickled, Or Polished (Ra ≤0.8μm Upon Request)
Temperature Range:	-196°C To 300°C (Cryogenic To Medium-High Temp Stability)	Typical Uses:	Heat Exchanger Tubes, Condenser Piping, Acid Pickling Lines
Highlight:	Marine Titanium Tubes , Chemical Titanium Tubes , ASME SB338 Titanium Tubes

ASTM B338 GR7(UNS R52400) Titanium Seamless Pipes | Lightweight, High Strength, Extreme Temperature Stability

1.. Brief introduction

ASTM B338 GR7(UNS R52400) is an α-type titanium alloy composed of industrial pure titanium (Ti) and trace palladium (Pd). It complies with the standards of the American Society for Testing and Materials (ASTM) and is designed for harsh corrosive environments. The material exhibits excellent corrosion resistance in high-temperature chlorides, strong acids (such as sulfuric acid and hydrochloric acid), and oxidizing media. It is lightweight, high-strength, and has excellent weldability, making it an ideal choice for the chemical, marine and energy fields.

2. Chemical composition of UNS R52400 (weight percentage, %)

element	Ti	Pd	Fe(MAX)	C(MAX)	N(MAX)	H(MAX)	O(MAX)	OTHER
Content	margin	0.12-0.25	0.20	0.08	0.03	0.015	0.18	≤0.1

3. Equivalent grade (compared with international standards)

standard	Brand
ISO	Ti-Pd 0.2
DIN	3.7235
JIS	Class 61
GB/T	TA9

4. Mechanical properties (annealed state, room temperature)

Performance indicators	Numerical range
Tensile strength (σ_b)	≥345 MPa
Yield strength (σ_{0.2})	≥275 MPa
Elongation (δ, gauge length 50mm)	≥20%
Elastic modulus (E)	105-120 GPa
Hardness (HV)	140-200
High temperature performance	Maintain stability below 300℃
