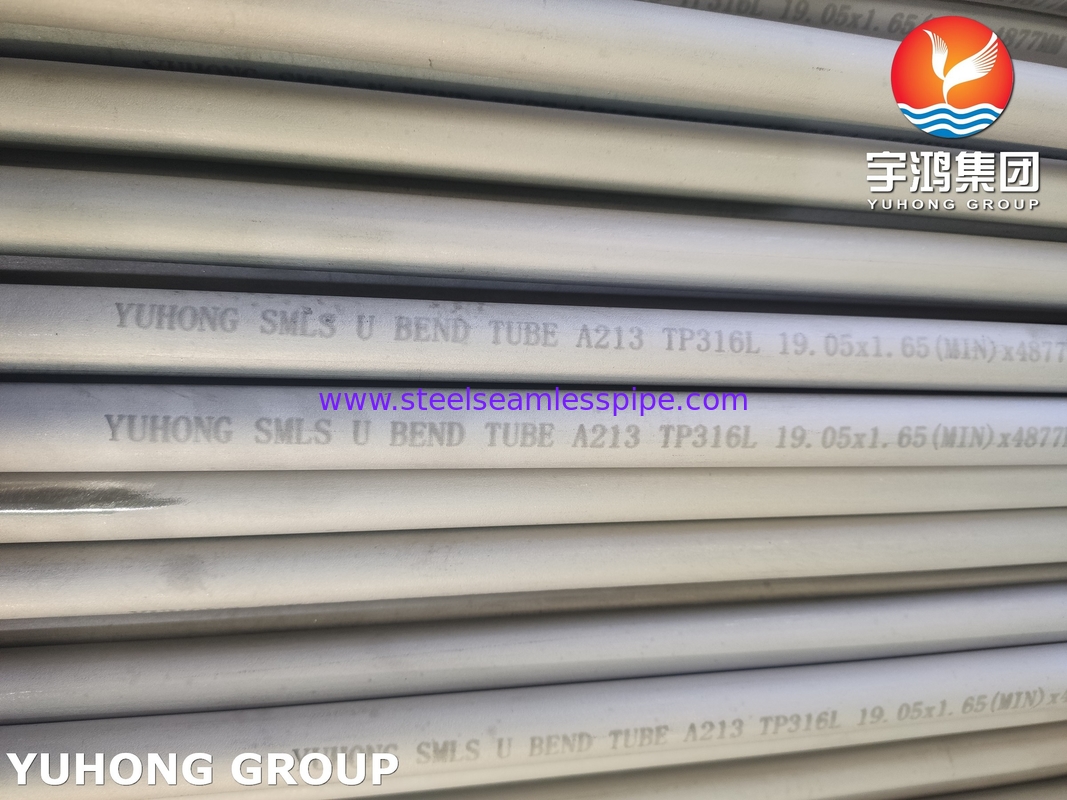

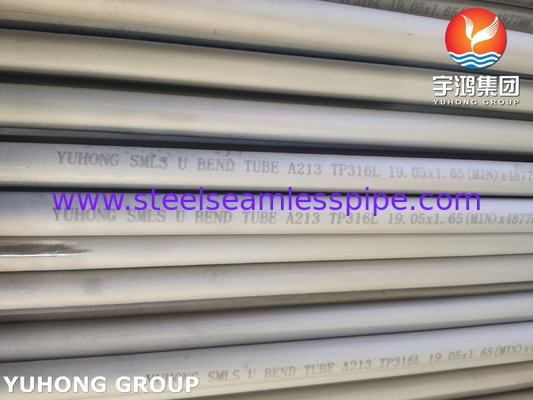

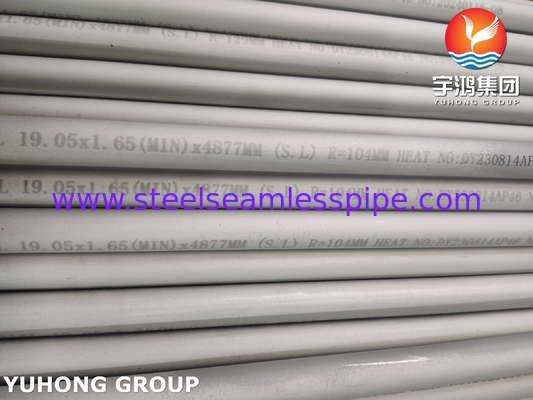

ASTM A213 TP316L Stainless Steel U Bend Tube Oil Gas Heat Exchanger Tube

ASTM A213 TP316L Seamless Stainless Steel U Bend Tube , 100% Hydraulic Test / Eddy Current Test

ASTM A213 TP316L stainless steel U bend tubes are typically subjected to various tests including hydrostatic tests, eddy current tests, and visual inspections to ensure they meet the required specifications. ASTM A213 mandates heat treatment to meet mechanical and corrosion resistance standards but does not specify the annealing method. The choice between bright and pickling annealed depends on end-use requirements--Bright Annealing: Ensures compliance with stringent surface and corrosion standards (e.g., marine, nuclear). Pickling Annealed: Suitable for less critical applications but requires rigorous quality control during pickling.


Mechanical Properties of ASTM A213 TP316L Stainless Steel U Bend Tube


Chemical Composition of ASTM A213 TP316L Stainless Steel U Bend Tube

Differences Between Bright Annealing and Pickling Annealed for ASTM A213 TP316L Seamless Stainless Steel U-Bend Tubes

1. Process Environment & Oxidation Control:

   • Bright Annealing: Conducted in a controlled atmosphere (e.g., hydrogen or vacuum) to prevent oxidation. This eliminates the formation of surface oxides, resulting in a clean, shiny finish directly post-annealing.

   • Pickling Annealed: Performed in ambient air, leading to oxide layer formation. Subsequent pickling (acid bath treatment) is required to remove oxides and restore surface integrity.

2. Surface Finish:

   • Bright Annealing: Yields a smooth, reflective surface free from discoloration or scale, ideal for applications requiring aesthetic appeal or minimal friction (e.g., heat exchangers).

   • Pickling Annealed: Leaves a matte or slightly roughened surface after oxide removal, which may require additional polishing for critical applications.

3. Post-Treatment Requirements:

   • Bright Annealing: No additional post-treatment is needed, streamlining production.

   • Pickling Annealed: Requires acid pickling to dissolve oxides, followed by passivation to enhance corrosion resistance.

4. Corrosion Resistance:

   • Bright Annealing: Superior corrosion resistance due to the absence of oxide layers and retained chromium content at the surface.

   • Pickling Annealed: Effective but dependent on thorough oxide removal; improper pickling can leave residues, compromising corrosion resistance.

5. Mechanical Properties:

   • Both processes relieve stresses and restore ductility after cold working (e.g., U-bend forming). Bright annealing may offer more uniform grain structure due to controlled conditions, whereas pickling annealed properties depend on post-treatment quality.


Application

1. Heat Exchangers: U-bends accommodate thermal expansion in shell-and-tube designs.

2. Chemical/Petrochemical: Resists chloride-induced stress corrosion cracking.

3. Power Generation: High-temperature steam/boiler systems.
