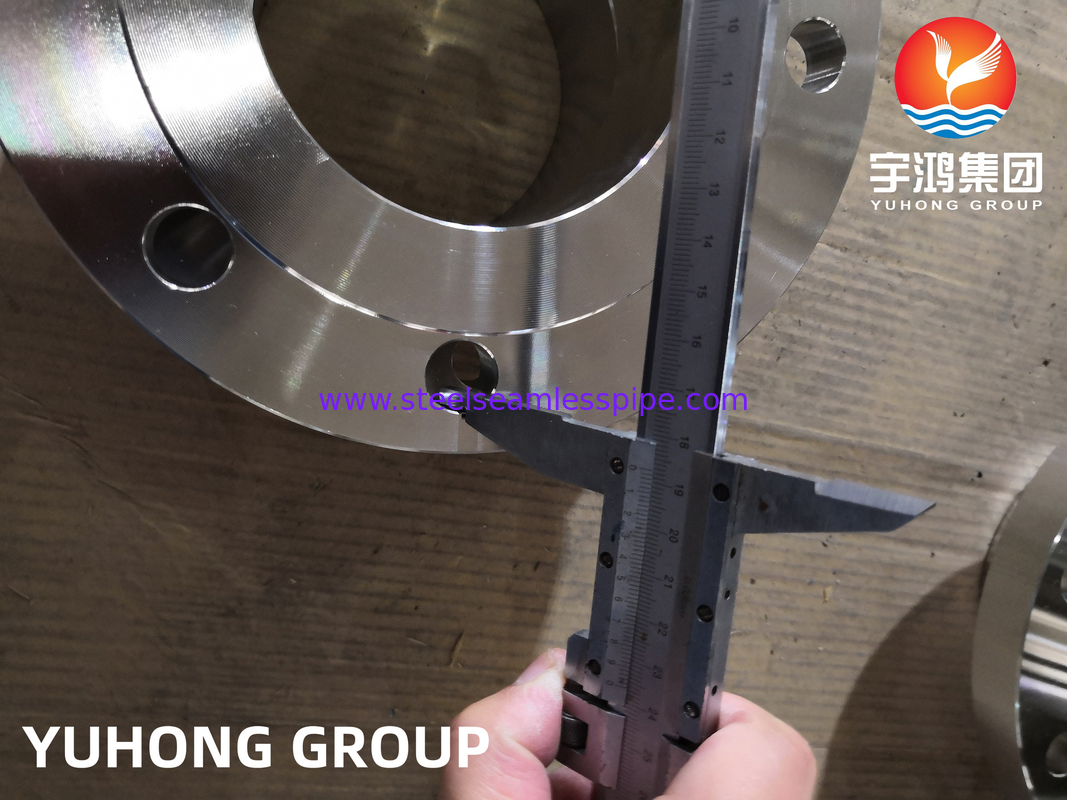

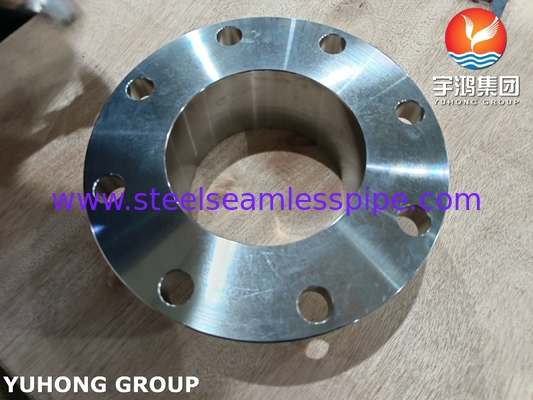

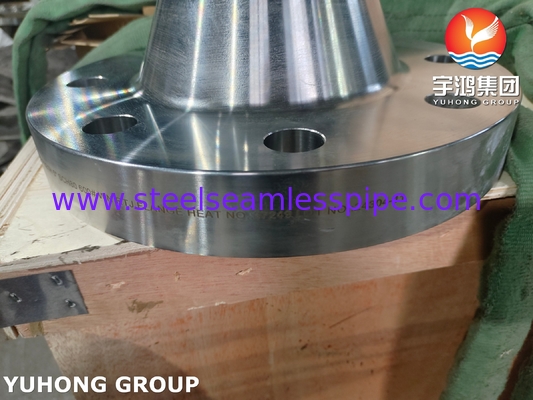

ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System

ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System

  • ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System
  • ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System
  • ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System
  • ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System
ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: Inconel 625 / UNS N06625 / DIN 2.4856
Payment & Shipping Terms:
Minimum Order Quantity: 3 Pieces
Price: Negotiable
Packaging Details: Ply-wooden Case / Pallet
Delivery Time: 5 - 60 work days
Payment Terms: T/T, L/C
Supply Ability: According To Customers' Request
Contact Now
All Products
Stainless Steel Seamless Pipe (274)
Stainless Steel Seamless Tube (263)
Duplex Stainless Steel Pipe (125)
Duplex Stainless Steel Tube (22)
Needle Tube (69)
Fin Tube (568)
Heat Exchanger (8)
Heat Exchanger Tube (414)
Heat Exchanger Tube Bundle (34)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (35)
Air Cooler (3)
Pressure Vessel (1)
Stainless Steel Welded Pipe (56)
Stainless Steel Welded Tube (110)
Nickel Alloy Pipe (263)
Nickel Alloy Tube (61)
Copper Alloy Tube (205)
Alloy Steel Tube (173)
Titanium Tube (6)
Bright Annealed Tube (155)
Boiler Tube (135)
Steel Fitting (773)
Steel Flange (566)
Others (382)
U Bend Tube (0)
Detailed Product Description
Standard: ASTM B564 / ASME SB564 Material Grade: Inconel 625 / UNS N06625 / DIN 2.4856
Size: 1/2"-48" Pressure: Class150-2500/ PN6-PN100
Technics: Froged Application: Petroleum,chemical,fittings And Connection
Highlight:

Nuclear Reactor Cooling System Steel Flange

,

Inconel 718 Steel Flange

,

ASTM B637 Steel Flange

ASTM B564 Inconel 625 / UNS N06625 / DIN 2.4856 Nickel Alloy Steel RTJ Flange



Inconel Flanges have resistant to oxidation, and this nickel-base alloy functions well at elevated temperatures. In fact, its properties remain unchanged over an extensive temperature range. And like most Inconel alloys, this material has resistant to stress related corrosion cracking to chloride ions. The main applicances of Inconel 625 Forging Flanges include industries like marine and petroleum industries. Other advantages of using the Inconel 625 Flanges are high fracture toughness as well as fabricability.



Inconel Alloy 718 Flanges Available Grades

ASTM B564 Inconel 600 Flange ASTM B564 Inconel 601 Flange
ASTM B564 Inconel 625 Flange ASTM B564 Inconel 718 Flange
ASTM B564 Incoloy 800 Flange ASTM B564 Incoloy 825 Flange
ASTM B564 Incoloy 925 Flange ASTM B564 Incoloy 330 Flange



Inconel Alloy 718 Flange Standards

ANSI/ASME B16.47 Flanges ANSI/ASME B16.36 Flanges ANSI/ASME B16.5 Flanges Pr. EN1902-1 Flanges
DIN Flanges JIS Flanges BS 4504 Flanges BS 10 Flanges
MSS SP-44 Flanges JIS B2220 Flanges KS B1503 Flanges UNI Flanges
SABS/SANS 1123 Flanges AS 2129, AS 4087 Flanges ISO 9624, ISO 7005-1 Flanges AWWA Flanges Standard
GOST Standard Flanges API Flanges AS/ANZ 4331.1 Flanges Series A Flange
Series B Flange SAE J518 Flanges GB Flange Norwegian Standard Flanges



Inconel 718 Flange International Standards

STANDARD WERKSTOFF NR. UNS
Inconel 718 2.4668 N07718



Inconel 718 Flanges Chemical Composition

Grade C Mn Si P S Ni Cr B Mo Co Al Ti Nb Cu
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.015 max 50 – 55 17 – 21 0.006 max 2.8 – 3.3 1.0 max 0.2 – 0.8 0.65 – 1.15 4.75 – 5.5 0.3 max



Inconel 718 Flanges Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000, MPa – 930 Psi – 75,000, MPa – 482 45 %





Applications:



1.Aerospace: jet engine flanges, rocket fuel system connectors.



2.Oil and gas: deep-sea drilling equipment flanges, high-pressure and high-temperature (HPHT) wellhead devices.



3.Nuclear power and energy: nuclear reactor cooling system flanges, gas turbine exhaust components.



4.Chemical equipment: high-temperature reactor flanges, acidic medium (HCl, H₂SO₄) transmission pipelines.





ASTM B637 Inconel 718 Nickel Alloy Steel Flange In Nuclear Reactor Cooling System 0
