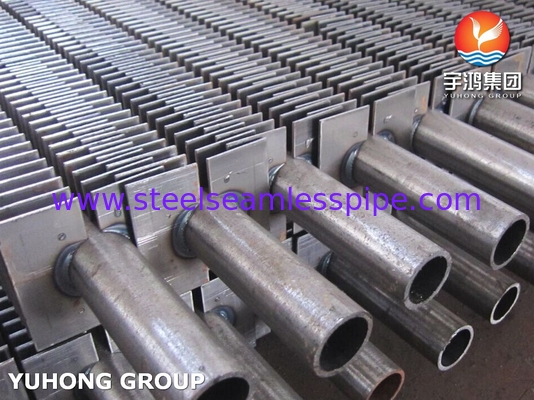

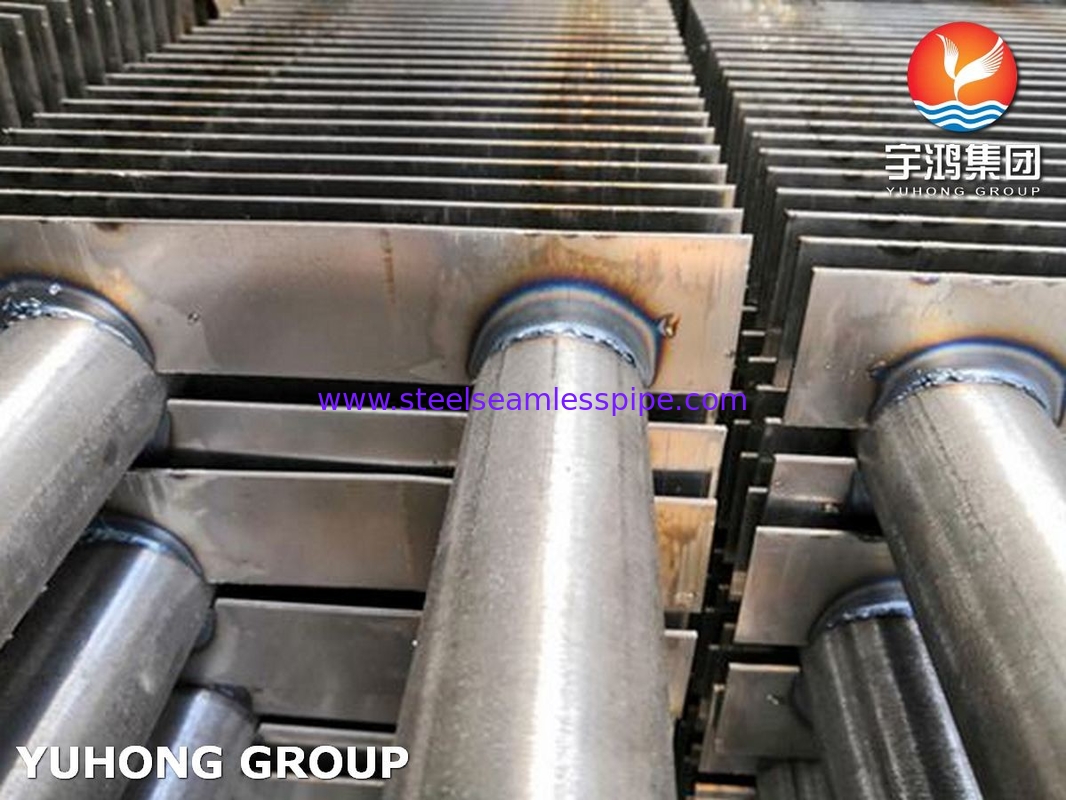

Stainless Steel Fin Tube H Type A213 TP316L With SS Fin SS316L For Smoke Heater

Stainless Steel Fin Tube H Type A213 TP316L with SS Fin SS316L for Smoke Heater

1.Material Properties of A213 TP316L and SS316L Fin

2. Advantages of Stainless Steel Fin Tube H-Type A213 TP316L with SS316L Fins

• High Corrosion Resistance:
  316L stainless steel is highly resistant to corrosion, including in chloride-rich environments. This makes it an ideal choice for smoke heaters, which are exposed to aggressive substances like flue gases, soot, and moisture.

• High-Temperature Durability:
  Both A213 TP316L and SS316L can withstand high temperatures (up to 870°C/1600°F for continuous operation), making this combination suitable for high-heat environments like smoke heaters, where temperatures fluctuate rapidly.

• Strength and Durability:
  The high strength of these materials ensures that the heat exchanger can withstand thermal expansion, mechanical stress, and high-pressure conditions without failing. This leads to a longer operational life and fewer maintenance issues.

• Excellent Weldability and Fabrication:
  Both materials are known for their ease of welding, making manufacturing and custom fabrication easier. This is essential for creating complex geometries and ensuring high-quality thermal contacts between the fins and the tube.

• Enhanced Heat Transfer Efficiency:
  While 316L stainless steel has a lower thermal conductivity than materials like copper or aluminum, the high resistance to corrosion, strength, and heat tolerance make it a more durable choice for demanding applications like smoke heaters. The H-type fin configuration helps increase the surface area for heat transfer, which is essential for effective heat dissipation.

• Low Maintenance:
  Due to the superior corrosion and heat resistance of SS316L and TP316L, the need for frequent maintenance is reduced, which is particularly advantageous in industrial applications where downtime can be costly.

3. Applications of Stainless Steel Fin Tube H-Type A213 TP316L with SS316L Fins

• Smoke Heaters and Boilers:
  In smoke heaters, which are part of thermal systems in power plants, refineries, or industrial heating systems, these materials can handle the high temperatures and aggressive exhaust gases (containing sulfur, soot, etc.). The combination of 316L stainless steel and TP316L ensures reliable, efficient heat exchange with minimal corrosion.

• Industrial Heat Exchangers:
  Stainless steel fin tubes are often used in industrial heat exchangers for heating applications involving flue gas, where high resistance to heat and corrosion is critical.

• Waste Heat Recovery Systems (WHRS):
  In processes where waste heat needs to be captured (such as in power plants or industrial processing), the durable nature of SS316L fin tubes provides effective heat recovery from hot gases or fluids.

• Furnaces and Kilns:
  For industries such as ceramics, glass manufacturing, and metal treatment, these fin tubes can be used in heat exchangers within furnaces and kilns, where high temperatures are prevalent.

• Chemical and Petrochemical Industry:
  In environments where both high temperatures and corrosive chemicals are present, the corrosion resistance and thermal capabilities of these materials provide an ideal solution.

4. Design Considerations

• H-Type Fin Configuration:
  The H-type fin design typically involves fins that are extruded with a shape that provides an excellent surface area for heat exchange while maintaining structural integrity. It increases the surface area available for heat transfer, enhancing the heat exchange efficiency without significantly increasing resistance to flow.

• Fin Density and Geometry:
  The density of fins and their spacing should be optimized based on the flow conditions of the smoke gases and the desired heat transfer rate. Too many fins can increase pressure drop, while too few can reduce heat transfer efficiency.

• Tube Wall Thickness and Size:
  The thickness of the A213 TP316L tubes needs to be chosen according to the required mechanical strength, operating pressure, and temperature conditions. Thicker walls can provide better structural strength but may reduce heat transfer efficiency. The diameter and wall thickness should be selected based on the specific system requirements.

• Weld Integrity:
  Proper welding techniques should be used to join the SS316L fins to the base tubes. If welding is not done correctly, it can lead to localized corrosion, especially in high-temperature environments, which could shorten the lifespan of the heat exchanger.

• Thermal Expansion:
  Stainless steel has a relatively low coefficient of thermal expansion, but in high-temperature environments, differential expansion between the tube and fins can occur. Proper design and material selection should account for this to avoid thermal stress that could lead to deformation or failure over time.

5. Maintenance and Operating Conditions

• Cleaning and Inspection:
  While 316L stainless steel is resistant to corrosion, it’s still important to periodically inspect for scaling or fouling, especially in applications where the flue gases are laden with particulate matter (such as soot) or chemicals. Regular cleaning ensures optimal heat transfer performance.

• Handling High-Temperature Cycles:
  Since smoke heaters experience cycles of high and low temperatures, the materials should be chosen to ensure they can withstand thermal cycling without cracking or degrading.
