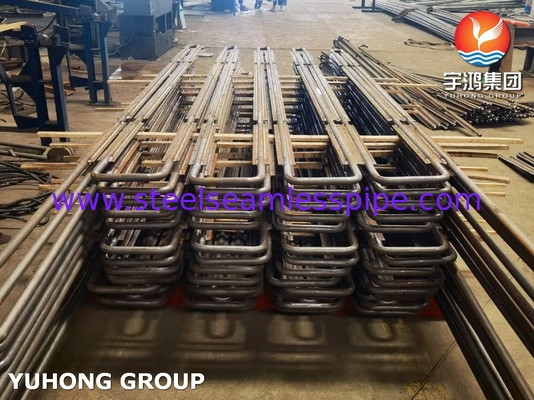

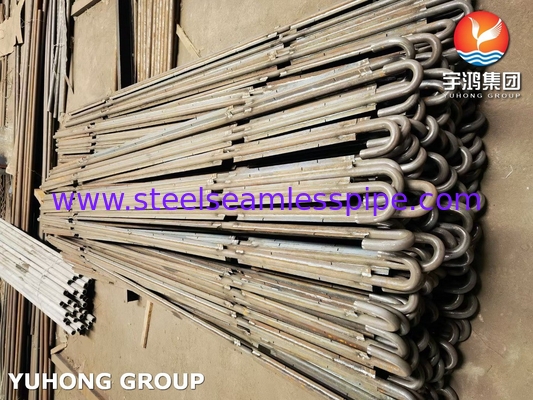

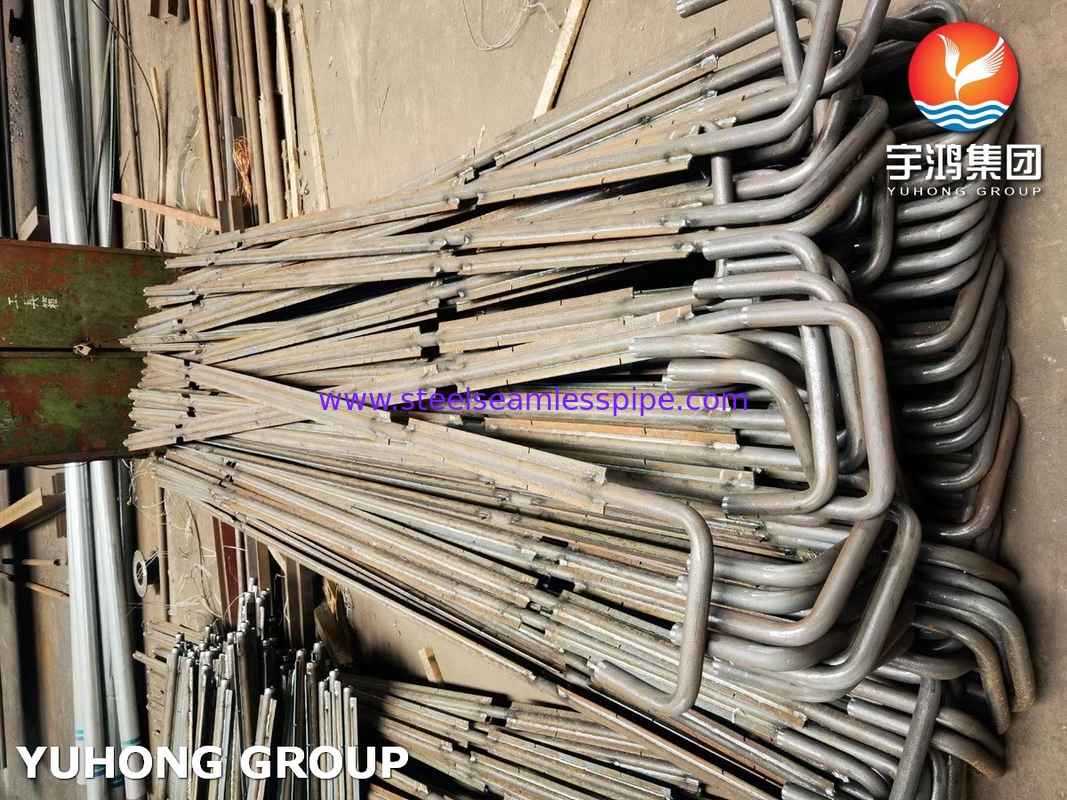

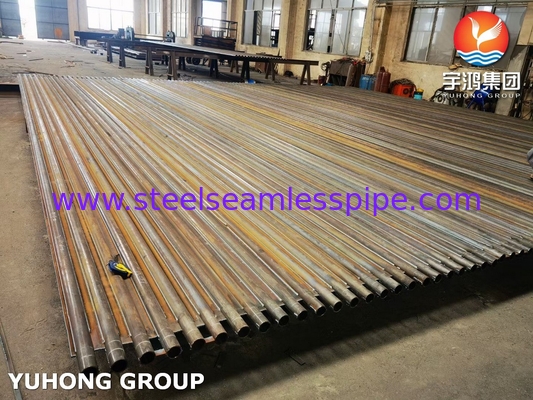

Membrane Waterwall Panel for Boiler

What is a Membrane Waterwall?

A Membrane Waterwall is a specialized type of water wall used in industrial boilers, particularly in power plants and waste incineration facilities. It consists of a series of vertical tubes (often made of a high-strength alloy) that are typically filled with water to absorb heat from the combustion gases. The design allows for efficient heat transfer while maintaining structural integrity under high-pressure conditions.

Key Features

1. Construction:
- Consists of tubes that are welded together, creating a continuous surface.
- The tubes are often designed to circulate water, which is heated into steam.

2. Heat Transfer Efficiency:
- The membrane structure minimizes heat loss, ensuring that more energy is converted into steam.
- Enhanced thermal conductivity due to close proximity of tubes.

3. Compact Design:
- Requires less space than traditional waterwalls, making it suitable for installations with limited area.
- Modular design allows for easier installation and maintenance.

4. Flexible Operation:
- Can handle fluctuating load conditions due to its design, making it adaptable to varying operational demands.

Advantages

- Improved Efficiency: Higher heat transfer rates lead to better fuel efficiency and lower operational costs.
- Reduced Emissions: More efficient heat transfer results in lower emissions, contributing to environmental sustainability.
- Durability: The materials and design provide resistance to high temperatures and pressures, prolonging the lifespan of the equipment.
- Operational Reliability: Enhances the safety and reliability of the boiler operation.

Applications

- Power Generation: Widely used in coal, natural gas, and biomass power plants.
- Waste-to-Energy Plants: Effective in harnessing energy from waste materials, improving overall energy recovery.
- Industrial Boilers: Common in manufacturing processes requiring steam generation.

Conclusion

Membrane waterwalls represent a significant advancement in boiler technology, combining efficiency, space-saving design, and environmental benefits. As industries aim to improve energy utilization and reduce their carbon footprint, the adoption of membrane waterwalls continues to grow, making them a key component in modern thermal systems.
