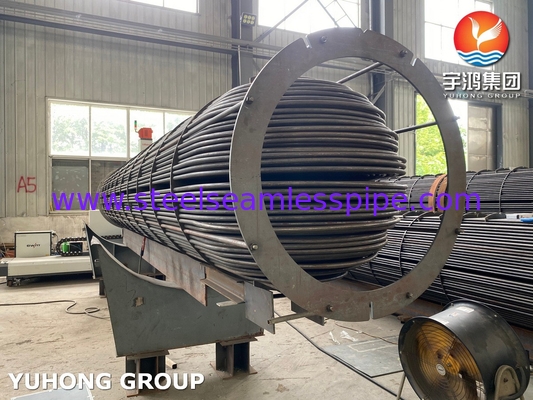

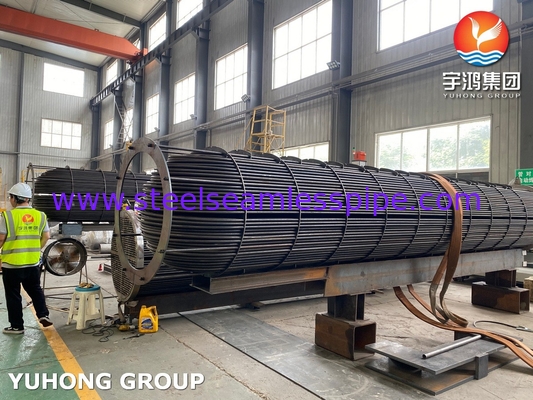

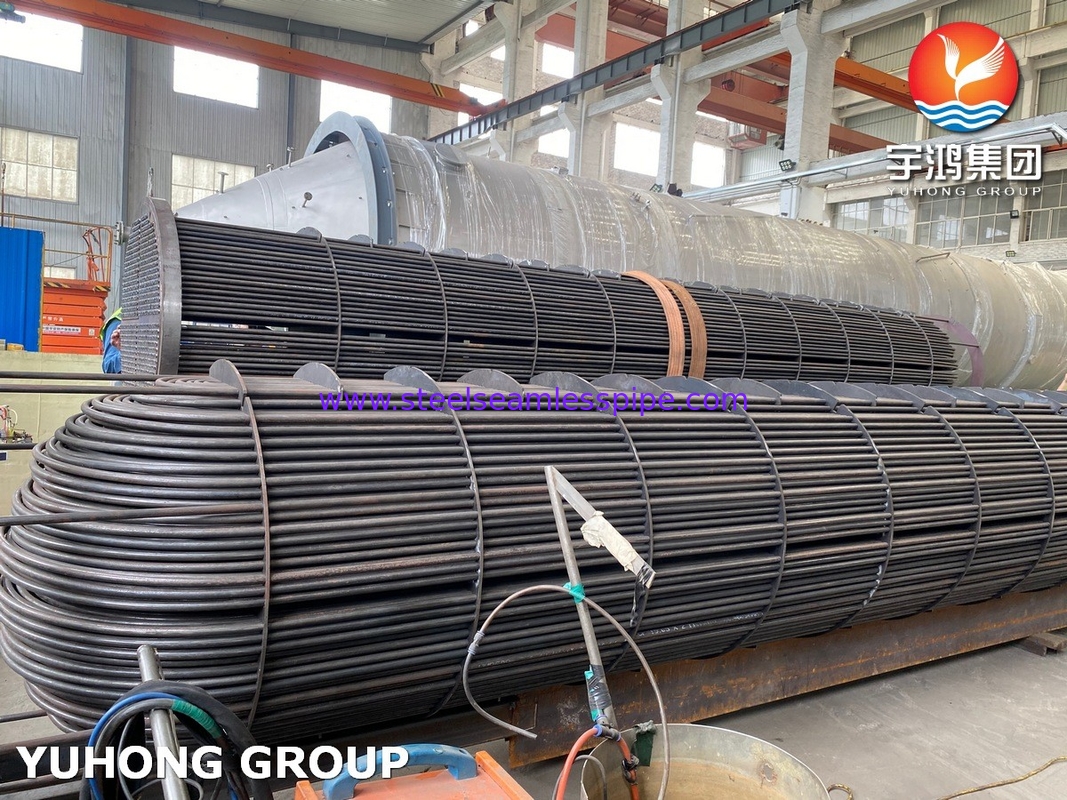

Tube Bundle Assembly with Seamless U-Bend Heat Exchanger Tubes
The design of U shape tube bundle allows for effective heat transfer while accommodating thermal expansion, making them a favorable choice in many scenarios. The U-tube configuration has straight sections of tubes that are bent into a U-shape, allowing for two fluid streams to exchange heat as they flow in opposite directions. The counterflow arrangement of the U-shaped tubes enhances heat transfer efficiency, as the two fluids flow in opposite directions, maximizing the temperature difference between them. The ends of the tubes are typically connected to a header, which allows the fluids to enter and exit the heat exchanger.
Design Considerations of U Shape Tube Bundle
-
Materials:
- The tubes can be made from various materials, including stainless steel, carbon steel, or other alloys, depending on the application and fluids involved. Corrosion resistance, thermal conductivity, and cost are key factors in material selection.
-
Fluid Types:
- U-tube heat exchangers can handle different types of fluids, including liquids and gases. Careful consideration should be given to the properties of the fluids, such as viscosity, corrosiveness, and fouling tendencies.
-
Pressure Drop:
- The flow rate, density, and viscosity of the fluids affect the overall pressure drop across the heat exchanger. Designers must balance performance with allowable pressure loss.
-
Heat Transfer Calculations:
- The effectiveness of a U-tube heat exchanger can be assessed using the overall heat transfer coefficient, which depends on factors like surface area, flow configuration, and temperature differences.
-
Fouling:
- Consideration should be given to potential fouling of the heat transfer surfaces. Cleaning schedules and materials should be chosen to minimize fouling while ensuring efficiency.
Common use material for Tube Bundle Heat Exchanger
There are two different of tube bundles: Straight tubes and U tubes. Depending on specific requirement and application, such as:
Carbon Steel Tubes: ASTM A179/ASME SA179/179M, ASTM A192, ASTM A333, ASTM A334
Alloy Steel Tubes: ASTM A213 T5, T9, T11, T22, T91
Stainless Steel Tubes: ASTM A213 TP304, TP304L, TP316L, TP321, etc.
Nickel Alloy Tubes: ASTM B163 UNS N02200, N04400, N06600, N06601, NO8800, N08825, etc
Copper Tubes: ASTM B111 C70600, C68700, C71500, C44300, etc.
Heat exchangers are devices used to transfer heat from source to another source. For shell and tube heat exchangers, fluids of different temperatures flow through the exchanger. One of the fluids flows through the tube bundle while another flows through the shell. Heat then transfers from one fluid to the other through either the tube side or the shell side of the exchanger. Heat exchangers and tube bundles can be made from a wide variety of available materials. Commercial Coils offers both straight tube bundles and u-tube bundles.
Straight Tube Bundle vs. U Tube Bundle
Both types of tube bundles have their own advantages and applications depending on factors like maintenance requirements, cost considerations, and operating conditions. The choice between straight tube and U tube bundles often depends on specific needs and priorities of the heat exchanger system.
Straight Tube Bundle:
1.Efficient design, with hot liquid flowing straight through the tubes.
2. Requires more effort to open the tank shell for cleaning or maintenance.
3. Lower installation cost compared to U tube bundle.
U Tube Bundle:
1. Entry and exit points on the same side, making maintenance easier.
2. Tubes in U shape allow for thermal expansion without stressing the bundle.
3. Modular unit design allows for easier disassembly for maintenance.
4. Well-suited for high-temperature differentials.
Applications
Tube bundles are used in a wide range of applications where heat transfer is required. Some common applications include:
- HVAC systems
- Chemical processing
- Oil and gas refining
- Power generation
- Food and beverage processing
- Pharmaceutical manufacturing
In each of these applications, tube bundles are used to transfer heat from one fluid to another. For example, in an HVAC system, tube bundles may be used to transfer heat from hot water to cold air, while in a chemical processing plant, they may be used to transfer heat between two chemical streams. The specific design of the tube bundle will depend on the requirements of the application.
