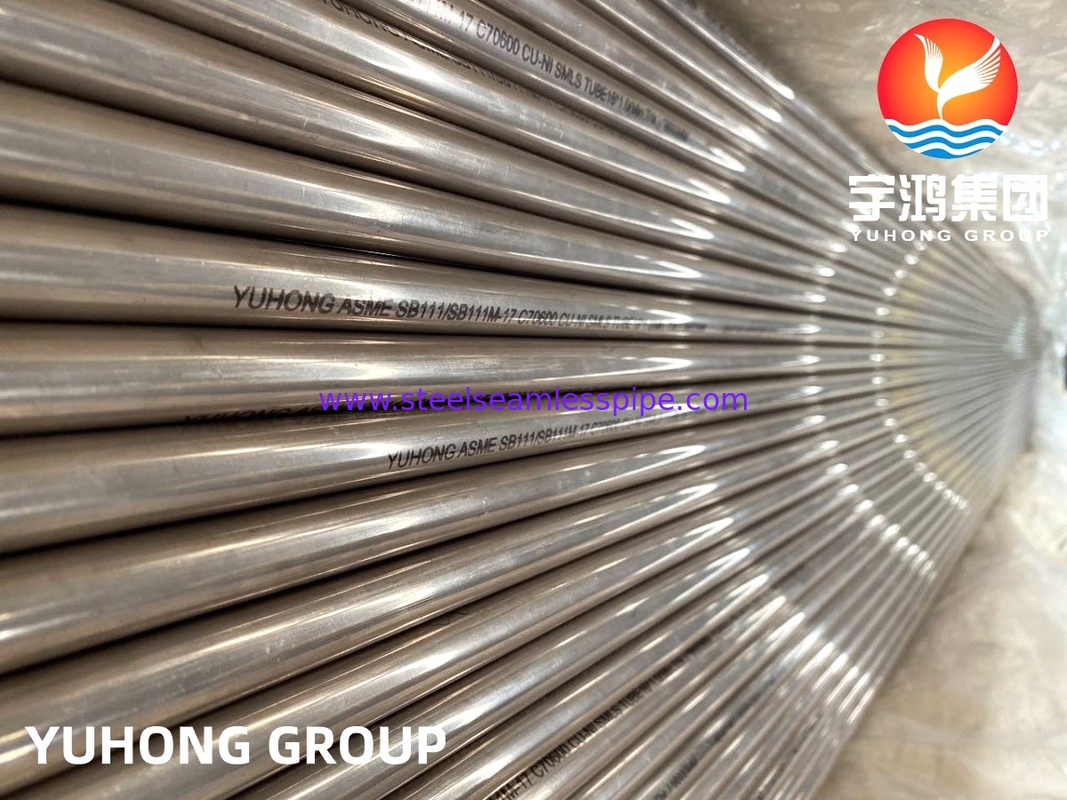

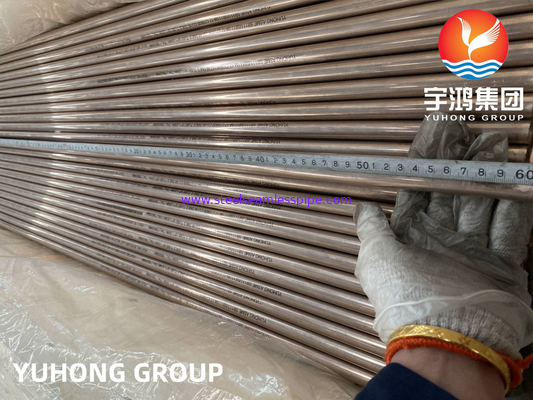

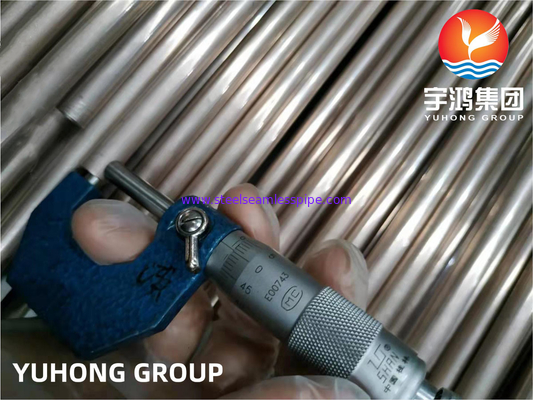

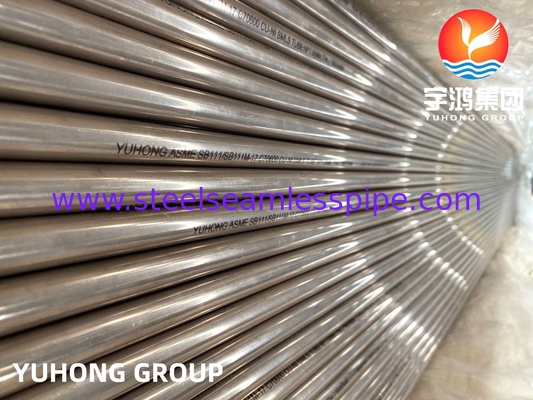

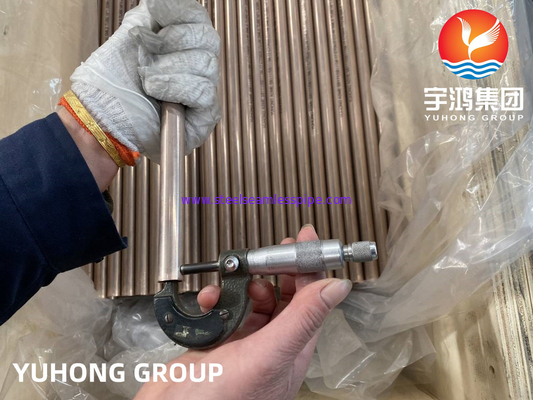

90/10 Copper-nickel Alloy Seamless Tube , ASTM B111 C70600 , Apply To Offshore And Marine Engineering

90/10 Copper-nickel Alloy Seamless Tube , ASTM B111 C70600 , Apply To Offshore And Marine Engineering

90/10 Copper-nickel Alloy Seamless Tube , ASTM B111 C70600 , Apply To Offshore And Marine Engineering
video
90/10 Copper-nickel Alloy Seamless Tube , ASTM B111 C70600 , Apply To Offshore And Marine Engineering
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, BV, DNV, PED, TUV, LR
Model Number: B111 C70600
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case
Delivery Time: Depends on quantity
Payment Terms: T/T,L/C at sight
Supply Ability: 10000Ton/Month
Contact Now
All Products
Stainless Steel Seamless Pipe (274)
Stainless Steel Seamless Tube (263)
Duplex Stainless Steel Pipe (125)
Duplex Stainless Steel Tube (22)
Needle Tube (69)
Fin Tube (568)
Heat Exchanger (8)
Heat Exchanger Tube (414)
Heat Exchanger Tube Bundle (34)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (35)
Air Cooler (3)
Pressure Vessel (1)
Stainless Steel Welded Pipe (56)
Stainless Steel Welded Tube (110)
Nickel Alloy Pipe (263)
Nickel Alloy Tube (61)
Copper Alloy Tube (205)
Alloy Steel Tube (173)
Titanium Tube (6)
Bright Annealed Tube (155)
Boiler Tube (135)
Steel Fitting (773)
Steel Flange (566)
Others (382)
U Bend Tube (0)
Detailed Product Description
Standard:: ASTM B111 / ASME SB111 Material:: C70600 / 90/10 Copper-nickel
Testing: ET, HT, UT Application: Heat Exchanger / Condenser / Ship / Submarine
Size: 1/4 NB TO 12" NB W.T.: Schedule 10 To Schedule 160
Highlight:

C70600 Copper Nickel Seamless Tube

,

Heat Exchanger Refineries Copper Nickel Tube

,

ASTM B111 Copper Capillary Tube

90/10 Copper-nickel Alloy Seamless Tube , ASTM B111 C70600 , Apply To Offshore And Marine Engineering




Overview


C70600 copper-nickel is suitable for applications requiring high resistance to corrosion and stress cracking. c70600 copper-nickel is known for its moderate strength, weldability and formability.

C70600 copper-nickel is an alloy of copper, further classified as cupronickel. cW352H is the EN numerical designation for this material. c70600 is the UNS number. In addition, the EN chemical name is CuNi10Fe1Mn. the British Standard (BS) name is CN102. the industry name is Cupronickel 90/10. It is widely used in marine applications due to its excellent resistance to seawater corrosion, low macro fouling rate and good manufacturability.



Characteristic of ASTM B111 C70600 ​


  • Excellent insulation performance
  • Elegant design
  • Super strength
  • Corrosion resistant
  • Durability



Chemical Composition of  ASTM B111  C70600


Element Content (%)
Cu 88.7
Fe 1.3
Ni 10.0



Mechanical Properties of  ASTM B111 C70600


Properties Metric Imperial
Tensile strength, ultimate 303-414 MPa 43900-60000 psi
Tensile strength, yield (depending on temper) 110-393 MPa 16000-57000 psi
Elongation at break (in 254 mm) 42.00% 42.00%
Machinability (UNS C36000 (free-cutting brass) = 100%) 20% 20%
Shear modulus 52.0 GPa 7540 ksi
Poisson's ratio 0.34 0.34
Elastic modulus 140 GPa 20300 ks



 Physical properties of  ASTM B111 C70600


Properties Metric Imperial
Density 8.94 g/cm3 0.323 lb/in3



Application:

  • Pipes for power plants and ships
  • Marine firewater systems
  • Pumps, valves, sheathing and fittings for ship hulls
  • Seawater desalination units
  • Hydraulic pipelines
  • Fish cages for aquaculture
  • Heat exchangers and condensers
  • Seawater piping works
  • Marine firewater systems
  • Tubes for power plants and ships
  • Pumps, valves, sheathing and fittings for ship hulls




90/10 Copper-nickel Alloy Seamless Tube , ASTM B111 C70600 , Apply To Offshore And Marine Engineering 0
