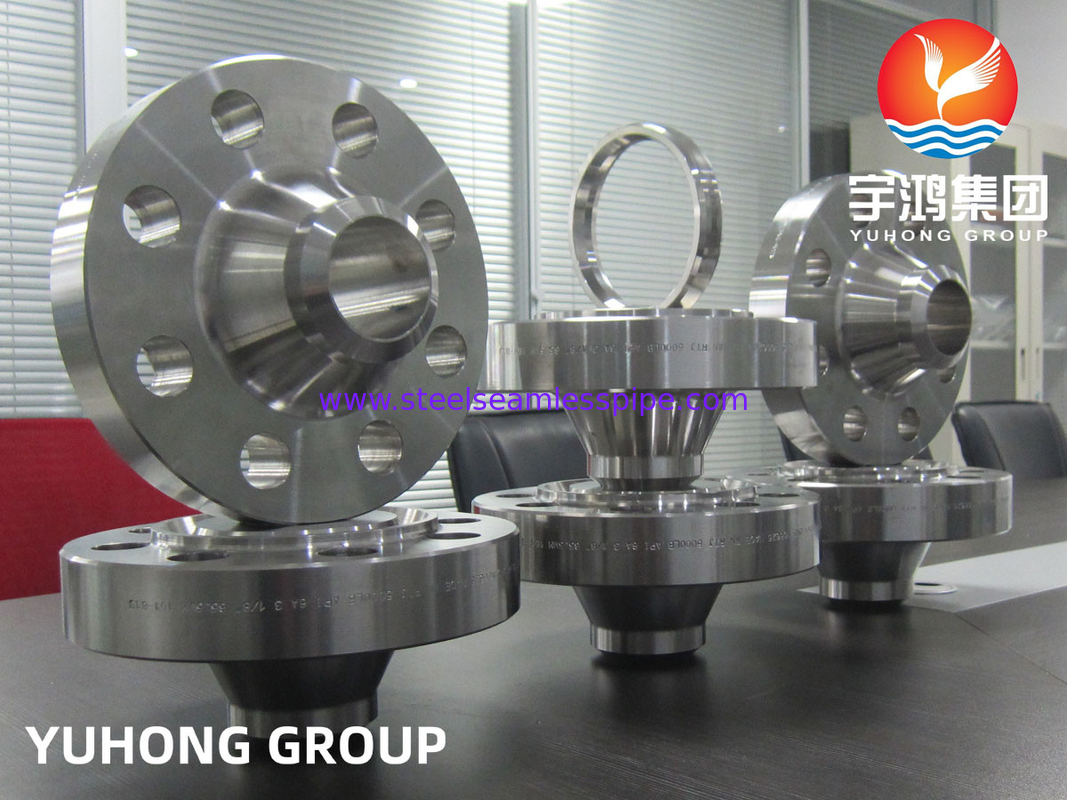

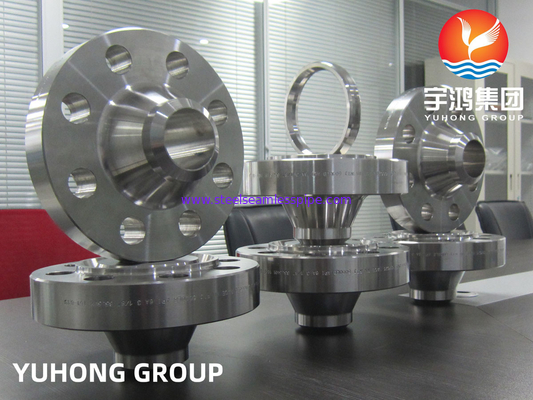

ASTM B564 Inconel 625/UNS N06625/DIN 2.4856 Welding Neck Flange

Overview:

Inconel 625 welding neck flanges are critical components in high-performance applications, particularly in industries like aerospace, chemical processing, and oil and gas. Made from a nickel-chromium-molybdenum alloy, Inconel 625 offers exceptional resistance to oxidation, corrosion, and extreme temperatures, making it ideal for harsh environments.

The design features a long tapered neck, providing a smooth transition from the pipe to the flange. This structure not only improves the flow of fluids but also enhances mechanical strength by distributing stress more evenly, reducing the risk of leaks or failures. The welding neck allows for easy attachment to pipes, ensuring a robust and leak-proof connection, which is crucial for maintaining integrity under high-pressure conditions.

Inconel 625’s unique chemical composition enables it to withstand various corrosive environments, including those involving chlorides, sulfuric acid, and seawater. Its excellent weldability means that these flanges can be easily fabricated and joined to other components without compromising strength or corrosion resistance.

In terms of specifications, Inconel 625 flanges are available in various sizes and pressure ratings, adhering to standards such as ANSI, ASME, and ASTM. They can be finished in different styles, including smooth and rough, depending on the application requirements. The mechanical properties of Inconel 625, including its high tensile strength and fatigue resistance, facilitate use in high-temperature applications up to about 1800°F (982°C).

From a maintenance perspective, using Inconel 625 welding neck flanges can minimize downtime due to their durability and resistance to wear and tear. Additionally, these flanges are often used in conjunction with other high-performance components, forming a reliable system that meets the rigorous demands of modern engineering projects.

Specification:

Chemical composition:

Mechanical Properties:


Application:

1. Aerospace: Used in jet engines and turbine components due to its ability to withstand extreme temperatures.

2. Chemical Processing: Ideal for handling corrosive substances, especially in processes involving acids or saline environments.

3. Marine Engineering: Often employed in offshore oil rigs and submarines due to superior resistance to saltwater corrosion.

4. Power Generation: Useful in nuclear power plants and waste heat recovery systems because of its structural integrity at high temperatures.

5. Pharmaceuticals: Trusted for its biocompatibility and resistance to contamination, making it suitable for sterile environments.

6. Oil and Gas: Often used in pipeline and valve flanges where resistance to corrosive environments and high pressure is crucial.

7. Cryogenic Applications: Effective in managing very low temperatures for storage and transport of liquefied gases.
